Seal SF₆ Gas Leaks Without Gasket Replacement

Restore flange and pipe joint sealing in place—no gas evacuation, minimal downtime

SF₆ leaks in high-voltage switchgear are most commonly caused by failing gaskets at flanges and pipe joints—but replacing those gaskets requires shutdown, gas evacuation, and costly disruption. Banks Industrial Group (BIG) provides a faster alternative. Using advanced Belzona SF6-FIX polymer systems, our team seals active leaks externally—minimizing downtime. The result: restored system integrity, reduced environmental risk, and extended asset life for contractors and maintenance teams managing active leaks or emergency conditions.

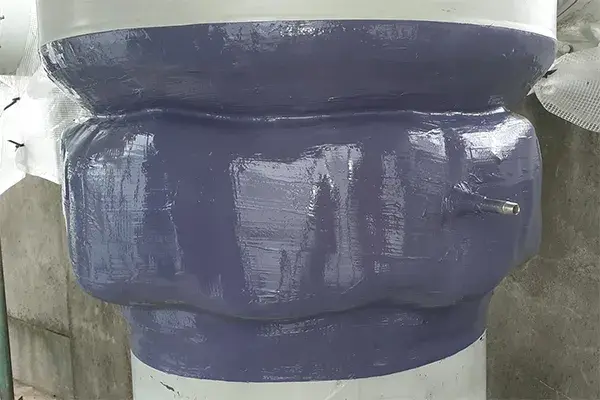

sf6 gas leak repair example

Key Benefits of BIG’s SF₆ Leak Repair Service

  • Seal flanges and pipe joints with minimal downtime
  • Extend equipment life and defer major maintenance
  • Rapid, same-day application minimizes disruption
  • Reduce leaks to undetectable levels
  • No SF₆ gas evacuation or system isolation required
  • Durable, long-term repair—not a temporary patch
  • Cold-applied process—no hot work or ignition risk
  • Removable system allows for future maintenance access

BIG Provides SF₆ Leak Repair Services For:

  • Gas-Insulated Switchgear (GIS)
  • High-voltage circuit breakers and disconnectors
  • Substation equipment and bus systems
  • Data center electrical infrastructure
  • Industrial power systems in manufacturing and processing plants
  • Petrochemical and storage tank terminal substations

Need SF₆ Leak Sealing?

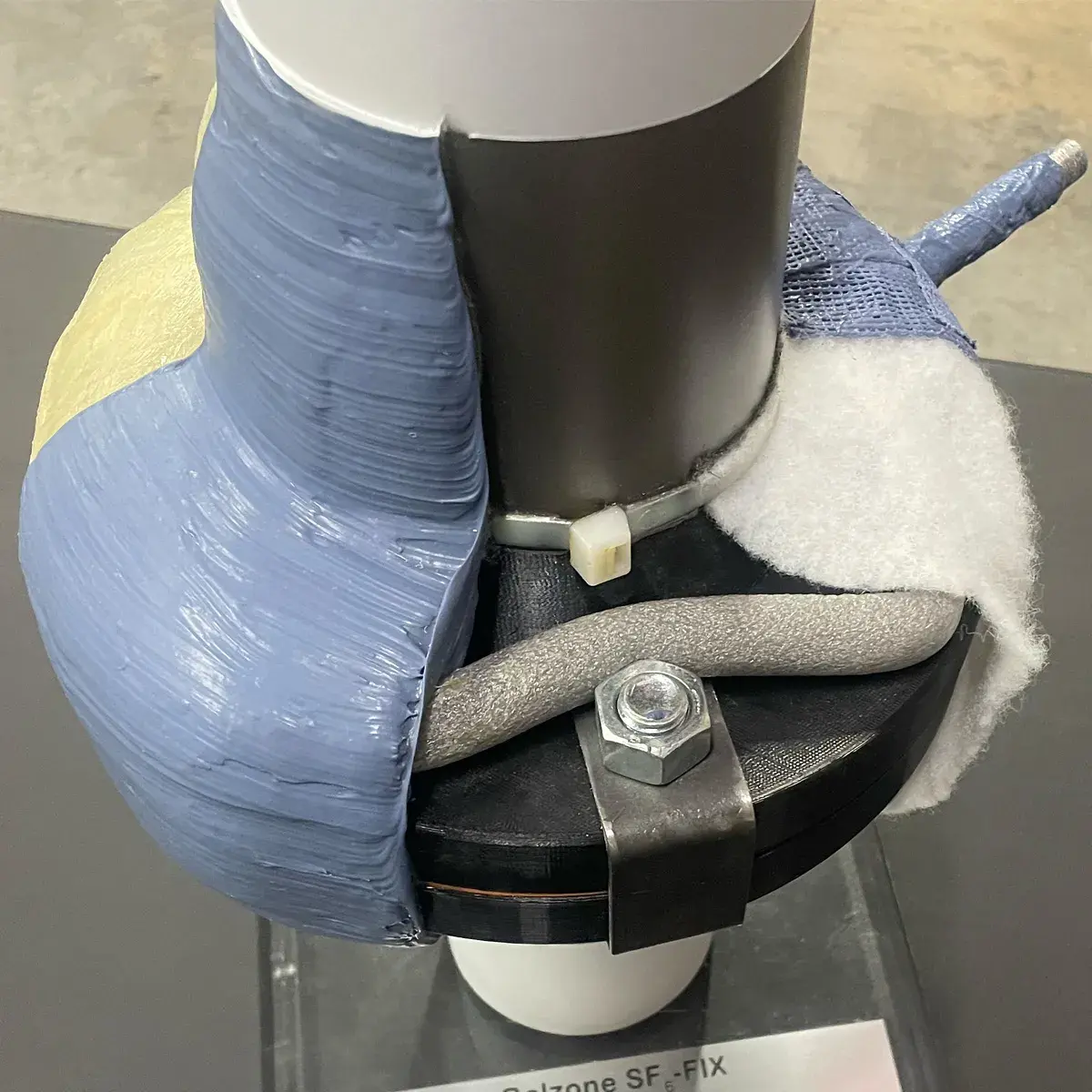

sf6 gas leak repair cut away example

Cut-away example of Belzona SF6-FIX showing application steps in a counterclockwise direction. The valve allows trapped gas to escape during the repair process and is capped when repair is fully cured.

Why Contractors and Maintenance Teams Choose Leak Sealing Over Replacement

When an SF₆ leak is discovered, gasket replacement is often assumed—but it typically requires shutdown, gas evacuation, and system disruption. BIG provides a proven repair approach that helps you maintain control of your project, your schedule, and your budget:

  1. Avoid Lengthy Downtime: Replacement often requires shutdowns, lead times, and coordination delays. BIG completes repairs externally—oftentimes in 12 hours or less.
  2. Extend Asset Life During Transition: With EPA oversight and state regulations evolving, repair allows facilities to safely maintain existing SF₆ equipment while planning future upgrades.
  3. Reduce Environmental and Compliance Risk: SF₆ is the most potent greenhouse gas in use today. Sealing leaks helps reduce emissions, supports reporting requirements, and protects your organization from regulatory exposure.
  4. Improve Jobsite Safety: No hot work, minimal intrusion, and controlled application reduce hazards for crews and facilities.
  5. Rely on a Proven Solution: This is not a temporary fix. BIG applies high-performance Belzona repair systems designed for durability, pressure retention, and long-term service in demanding electrical environments.

Where SF₆ Leaks Start—and Why They Persist

Most SF₆ leaks originate at predictable points:

  • Flanges and gasketed joints (primary source of leaks)
  • Interconnecting pipe joints and fittings
  • Bushings and mechanical interfaces
  • Valves, gauges, and gas handling points
  • Weld seams and tank imperfections

Common causes include:

  • Aging or hardened gaskets losing elasticity
  • Corrosion on flange faces and sealing surfaces
  • Improper reassembly or torque during maintenance
  • Thermal cycling, vibration, and operational stress
  • Repeated “top-offs” masking unresolved leak paths

In many cases, replacing the gasket alone does not address the full problem—especially when sealing surfaces or adjacent components are compromised. These conditions are exactly what make in-place sealing a practical and effective alternative to gasket-based repairs.

Repair vs. Gasket Replacement—A Smarter First Step

Gasket Replacement: Requires shutdown, SF₆ evacuation, disassembly, and reassembly—adding time, cost, and coordination risk.

BIG In-Place Repair: Seals leaks externally—restoring performance immediately.

Before committing to a shutdown, it pays to evaluate whether the leak can be safely sealed in place. In many cases, shutdown can be significantly reduced.

Beyond Flanges: Additional Repair Capabilities

While most SF₆ leaks occur at flanges and pipe joints, BIG also provides advanced in-place repair solutions for more complex conditions:

  • Weld seam leaks and pinholes
  • Bushing interface leaks
  • Localized corrosion affecting sealing integrity

These repairs can often be completed in hours, expanding your options beyond conventional methods.

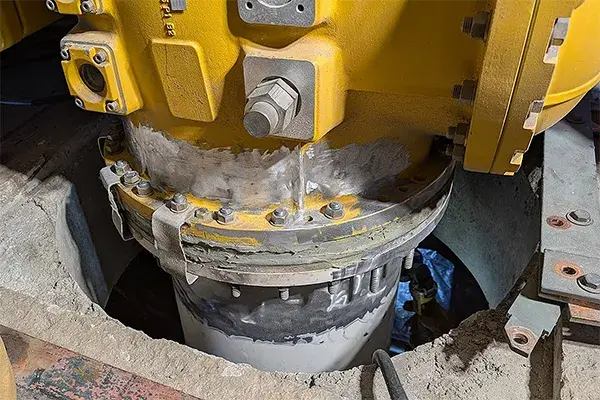

sf6 gas leak from area of failed caulk repair

Failed caulk repair is leaking SF₆ gas.

permanent sf6 leak repair at pipe flange where caulk had failed

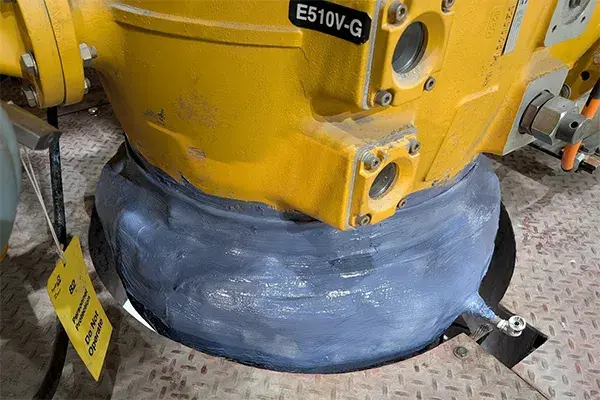

SF6-FIX results in a permanent leak seal repair.

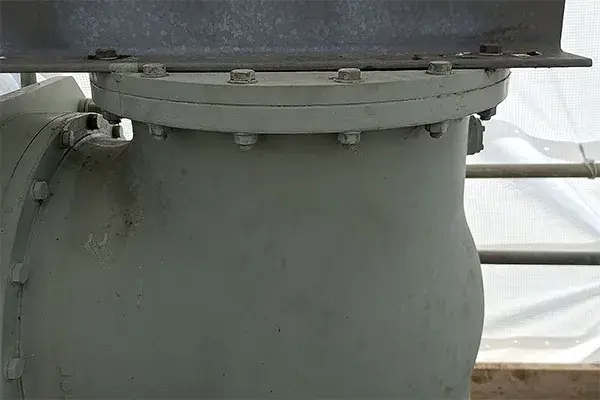

sf6 leak at area of difficult pipe flange geometry
belzona sf6 leak repair located around area of difficult pipe flange geometry

SF₆ leak at pipe flange under structural beam.

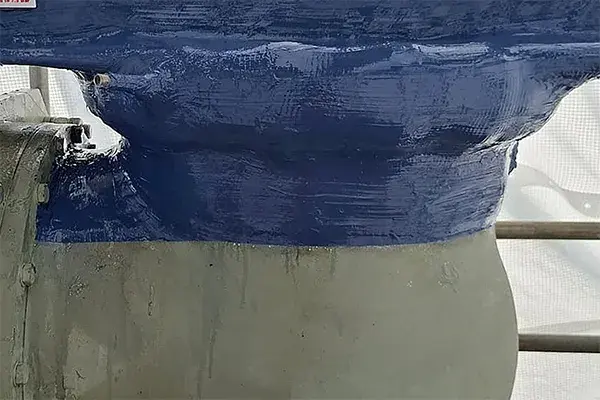

Difficult geometry is easily sealed with SF6-FIX.

BIG’s SF₆ leak sealing process follows a proven, structured application designed for durability and pressure retention:

Step-By-Step SF₆ Leak Repair Application

sf6 leak repair surface preparation with grinder

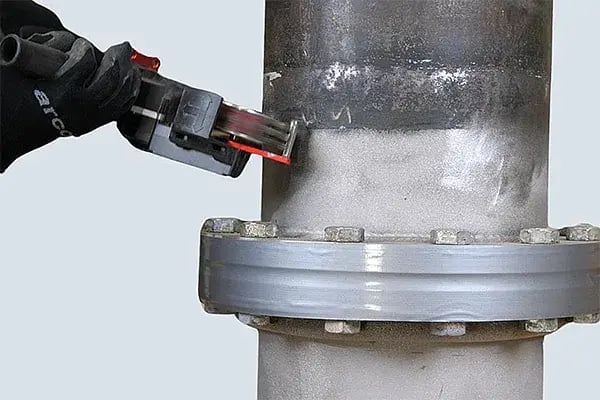

1) Surface prepared to SSPC-SP11 with grinder for optimal SF6-FIX repair adhesion.

sf6 leak repair breather membrane application

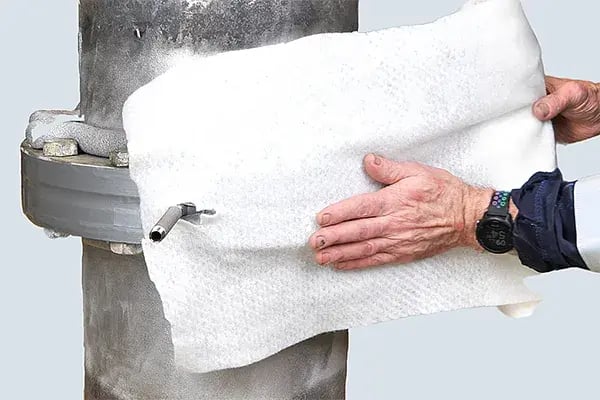

2) Breather system installed to control gas flow during curing. This is capped upon final cure.

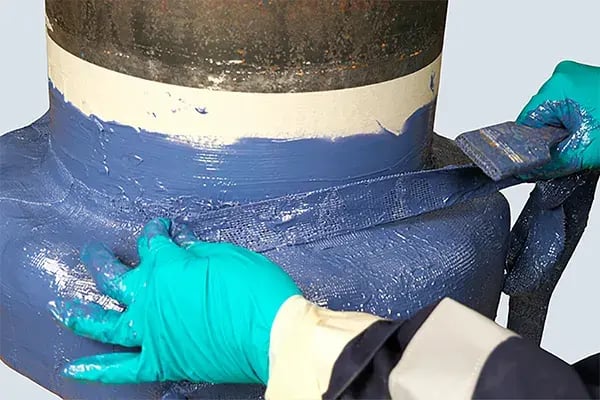

sf6 leak repair reinforcement layer application

3) Belzona 7311 structural adhesive applied; reinforcement tape added to encapsulate leak area.

sf6 leak repair final reinforcement layer application

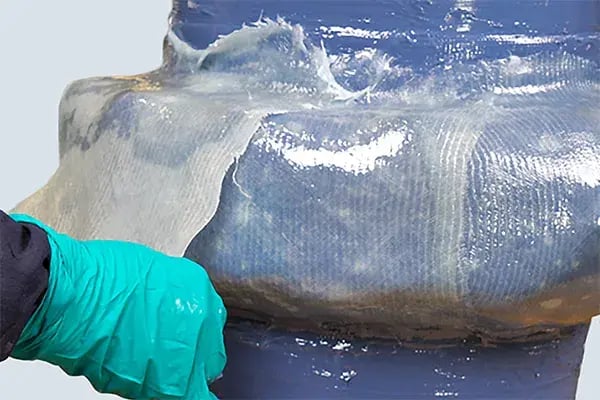

4) SuperWrap II reinforcement applied for strength and pressure retention.

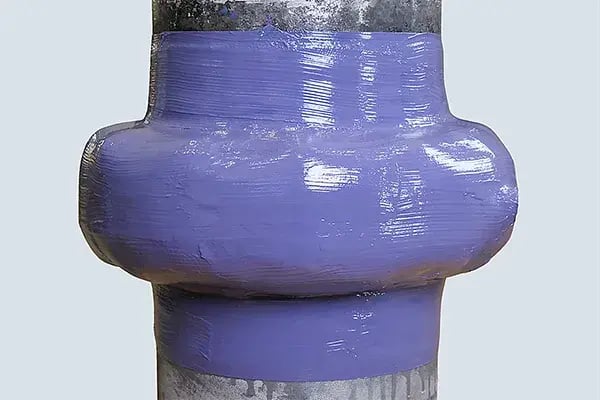

sf6 leak repair final belzona 7311 coating application

5) Final Belzona 7311 coat ensures complete encapsulation and high strength sealing.

sf6 leak repair optional belzona 5721 protective coating

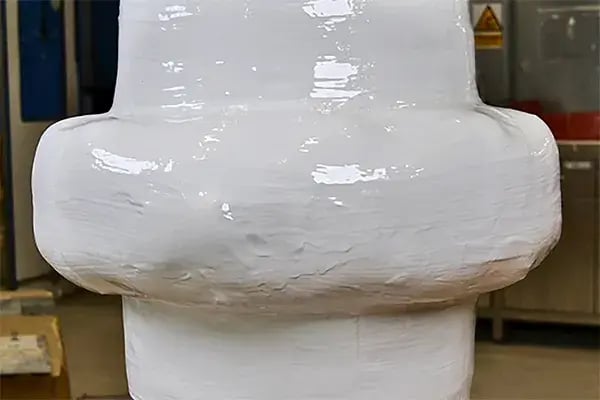

6) Repair capped and overcoated with Belzona 5721 for protection and long-term durability.

A Trusted Partner in the Field

Banks Industrial Group works alongside electrical contractors, maintenance teams, and specialty service providers to deliver safe, precise, and efficient SF₆ leak repairs. Our trained technicians apply proven Belzona systems that restore sealing performance, extend asset life, and minimize disruption—so you can keep critical systems running and projects on track.

If you’re dealing with an SF₆ leak, don’t assume shutdown and gasket replacement are your only options. Contact Banks Industrial Group to request an assessment, or schedule a site visit. We’ll help you quickly determine whether the leak can be sealed in place—so you can resolve the issue safely, efficiently, and without unnecessary downtime. Call 856-687-2227 or email our SF₆ leak repair experts today.

Need SF6-FIX Materials or Training?

Contact Belzona Repair Technology for product supply, technical guidance, and application training. We are Belzona authorized distributors for New Jersey, Eastern Pennsylvania, Delaware and Western New York State areas.
