Grout Injection Services & Active Water Leak Repair

Active water leaks can damage equipment, increase wastewater treatment loads and accelerate concrete deterioration. Banks Industrial Group seals leaking cracks, joints and pipe penetrations in concrete tanks, manholes, vaults and other industrial structures throughout New Jersey, Pennsylvania, Delaware and New York.

BIG uses polyurethane chemical grout injection to control active leaks quickly and help extend structure service life. When deterioration extends beyond the leak, our crews can combine leak sealing with concrete restoration, protective coatings or epoxy injection for suitable dormant structural cracks.

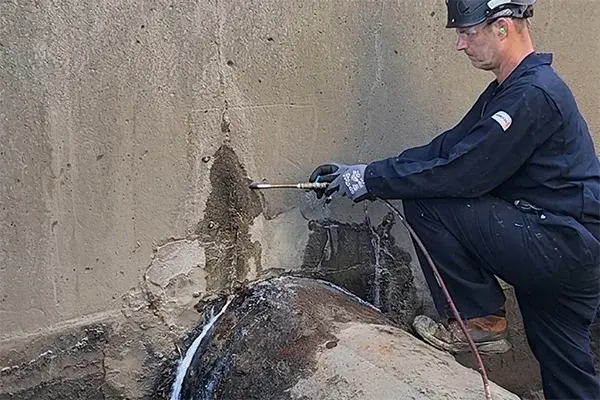

crack injection leak sealing

Concrete Grout Injection Services:

  • Active leak repair using hydrophilic polyurethane crack injection
  • Seal cracks caused by shrinkage, settlement and freeze/thaw cycling
  • Manhole leak sealing and curtain wall grouting to prevent infiltration and inflow
  • Soil stabilization for concrete structures using hydrophobic polyurethane grout injection
  • Epoxy injection for suitable dormant structural cracks
  • Expert consultation to match the best repair method to crack characteristics

Benefits of Concrete Leak Injection:

  • Stop active leaks: Seal water pathways through cracks, joints and pipe penetrations
  • Extend asset life: Preserve serviceable structures and help defer costly replacement
  • Reduce operating costs: Limit water loss and unwanted groundwater entering wastewater systems
  • Minimize disruption: Fast-curing grouts help shorten repair time
  • Avoid tank draining: Suitable leaks can be repaired while tanks remain filled and operating
  • Reduce excavation: Accessible leaks can often be sealed without digging
  • Accommodate crack movement: Flexible grouts maintain seal as cracks expand and contract
  • Slow water-related deterioration: Limit moisture intrusion that contributes to corrosion and freeze/thaw damage

Concrete leak injection seals water pathways through cracks, joints and penetrations. For machinery baseplates, equipment foundations and load-transfer grouting, see BIG’s Industrial Grouting Services.

Need Concrete Leak Sealing?

Request an estimate or consultation.

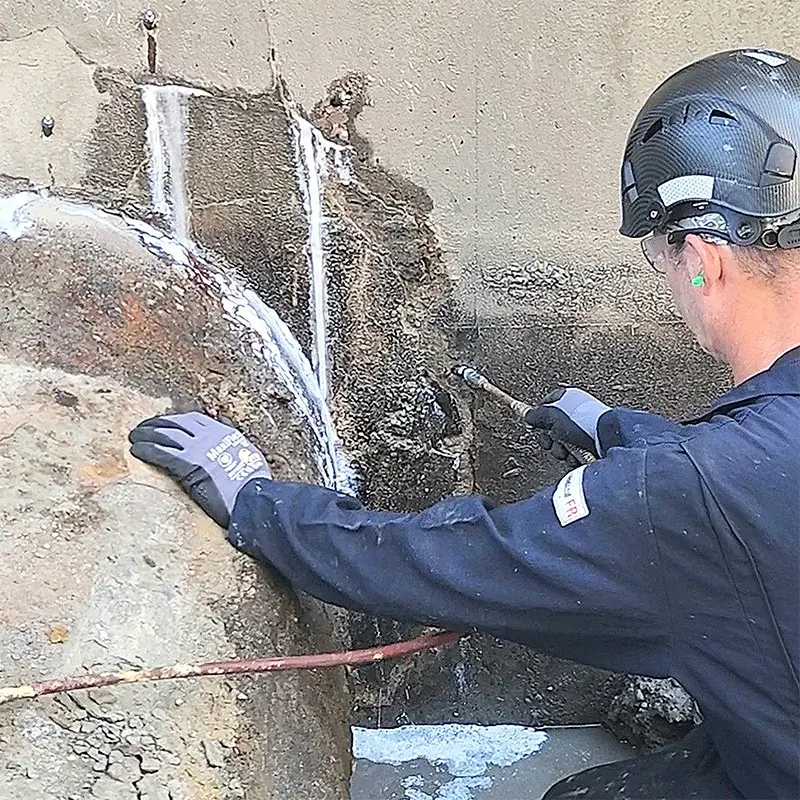

polyurethane foam concrete leak injection work in process

Injected polyurethane grout reacts with water, expands and cures to form a flexible seal.

Why Hire Banks Industrial Group?

Effective leak repair takes more than selecting a grout. BIG combines material selection, hands-on installation and industrial safety practices to deliver repairs suited to your facility.

  1. Expertise matched to your problem
    We assess crack characteristics, movement, water flow and exposure conditions to recommend an appropriate repair.
  2. Safety suited to industrial work
    BIG brings confined-space training, OSHA 30 training and ISNetworld A+ RAVS+ qualifications that help meet facility requirements and support safe execution.
  3. Repairs planned around your operations
    We coordinate access, installation and curing requirements with your team to minimize disruption and support a timely return to service.
  4. Leak sealing and restoration together
    When damage extends beyond the leak, BIG can rebuild deteriorated concrete and apply protective coatings, including Belzona systems. One contractor coordinates the work to support durable repairs and protection against future deterioration.

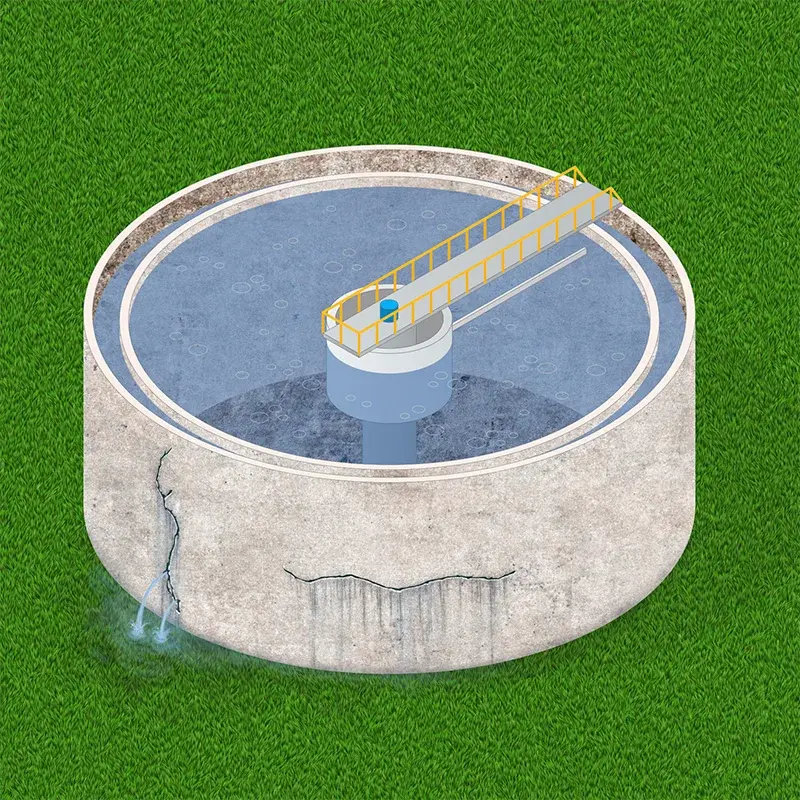

concrete crack leak repair in water tank

Seal Concrete Tank Cracks Without Draining

Settlement, freeze/thaw cycles and vibration can crack concrete tanks, causing water loss and deterioration. BIG injects selected flexible polyurethane grout from the accessible exterior to seal suitable non-structural cracks while tanks remain filled and operating. The flexible grout helps keep the crack watertight as the concrete expands and contracts. Sealing the leak helps slow deterioration and extend tank service life, while repairing the tank without draining reduces downtime and associated costs. See our Concrete Tank Repair page for complete services.

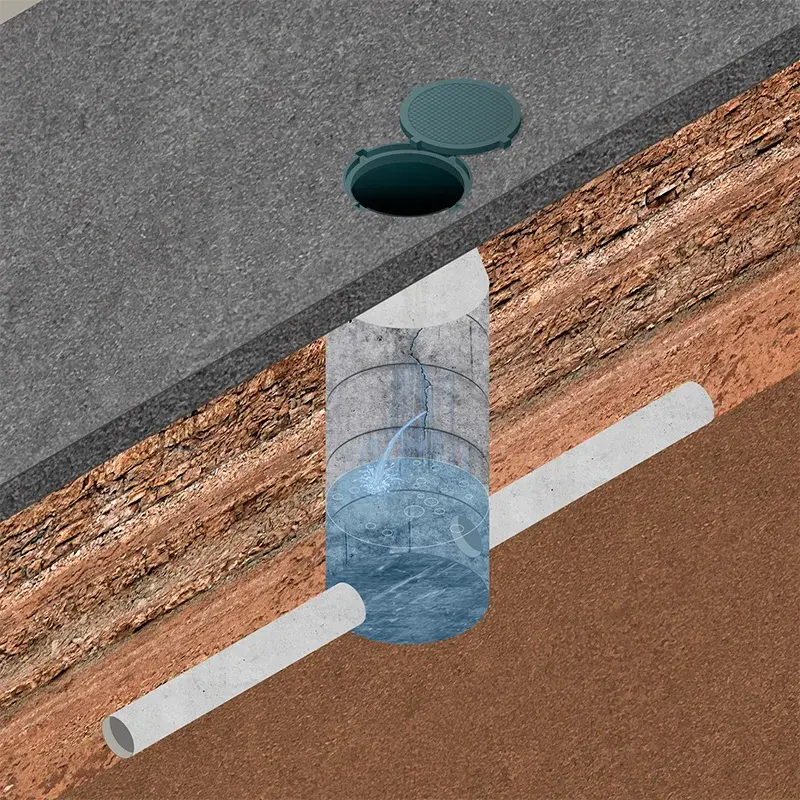

concrete crack leak repair in manhole

Seal Concrete Manhole Cracks to Reduce Infiltration

Cracks and failed joints in concrete manholes let groundwater enter sewer systems, increasing treatment costs and straining capacity during storms. BIG injects selected polyurethane grout to seal leaking cracks, joints and pipe penetrations, using flexible materials where movement is expected. Reducing infiltration helps lower treatment costs, preserve sewer capacity and reduce overflow risk. Repairs can often be completed from inside the manhole without excavation, limiting disruption and helping extend structure service life. See our Wastewater Treatment Plant Solutions page for complete services.

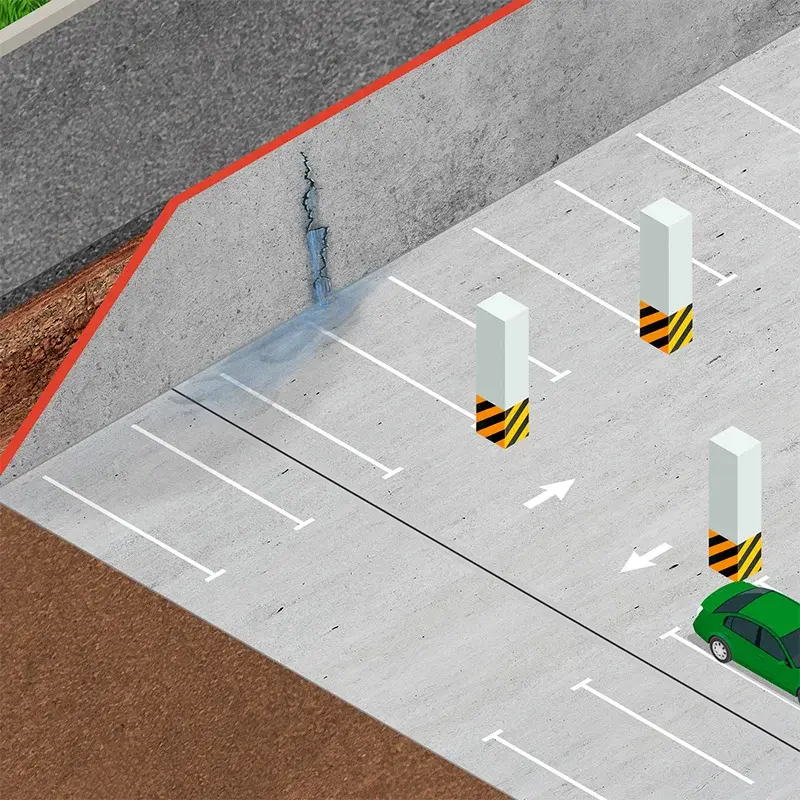

concrete crack leak repair in underground parking garage

Seal Leaking Cracks in Underground Concrete Vaults

Groundwater leaking through cracks and joints in underground concrete vaults and structures can damage equipment, create safety hazards and accelerate deterioration. BIG injects selected polyurethane grout to seal active leaks in cracks, joints and pipe penetrations. Suitable repairs can be performed from inside the structure without excavation, reducing costs and site disruption. Sealing water pathways helps protect equipment, slow concrete deterioration and extend structure service life. See our complete set of Industrial Concrete Repair Services here.

BIG Concrete Water Leak Repair Examples

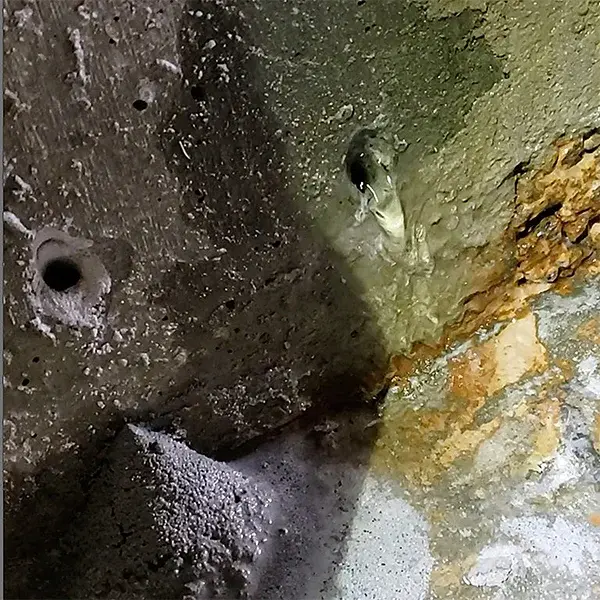

concrete water leak

Water seeping through an underground concrete wall.

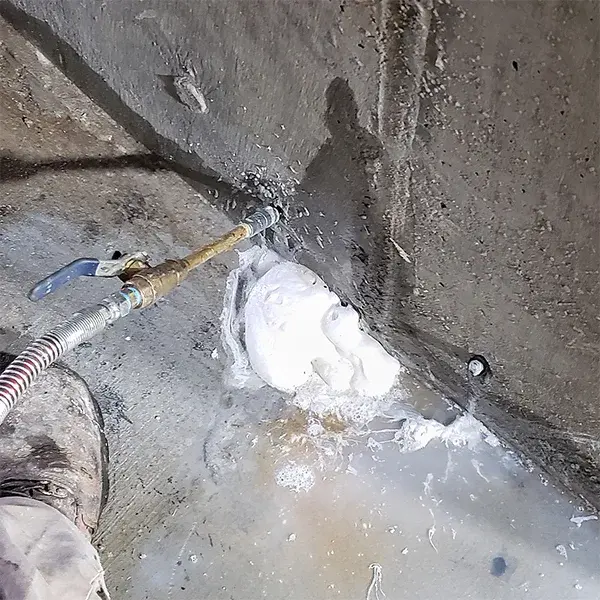

concrete water leak sealed by polyurethane grout injection

Polyurethane grout reacts with water and expands to seal the leak pathway.

Stopping an Active Leak in a Utility Vault

Water flowed through this underground utility vault wall. BIG injected polyurethane grout, which expands on contact with water to seal the leak. Stopping water intrusion helps protect equipment, improve access and reduce operational disruption.

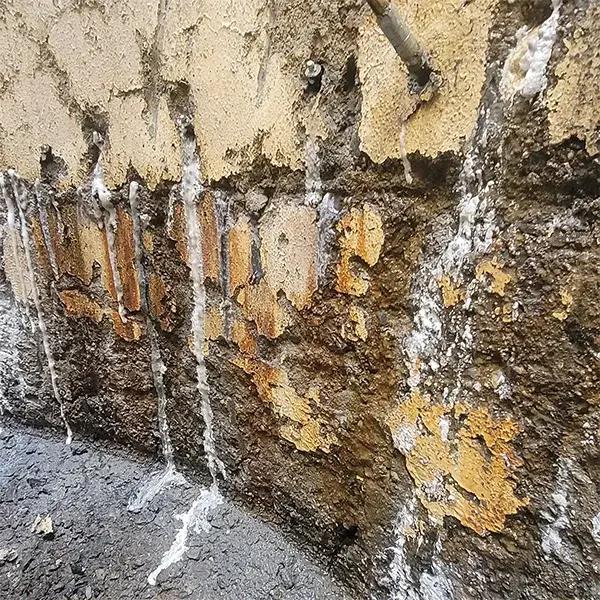

concrete tank grout injection leak sealing

Polyurethane grout injected into deteriorated concrete tank wall.

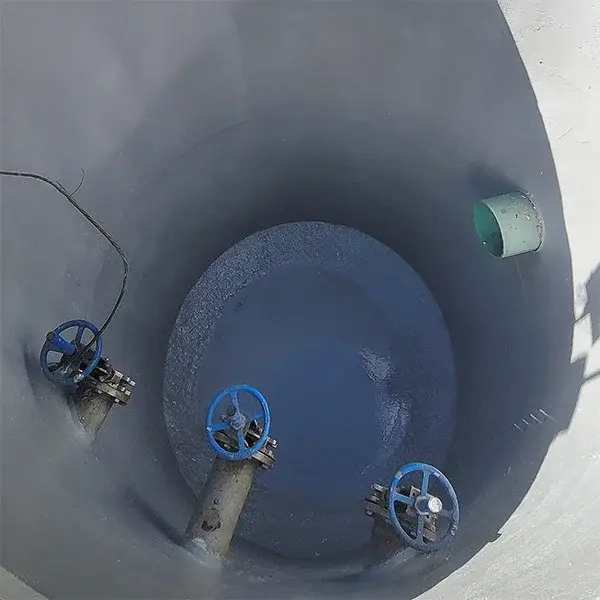

final concrete tank restoration

Concrete tank after leak sealing, restoration and protective coating.

Concrete Tank Leak Sealing & Restoration

BIG sealed leaks in this underground concrete tank’s deteriorated walls and around pipe penetrations using polyurethane grout. Our crews then rebuilt the concrete and applied a protective coating, helping extend tank service life and avoid costly replacement.

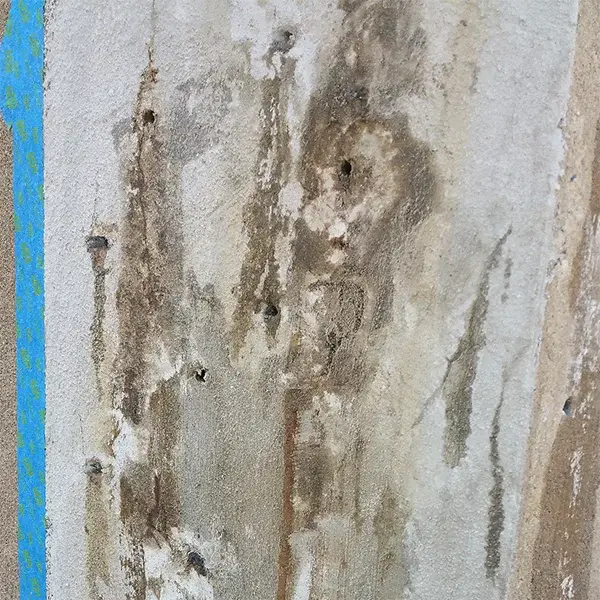

concrete wastewater tank leak

Water seepage from external wall of above-ground concrete tank.

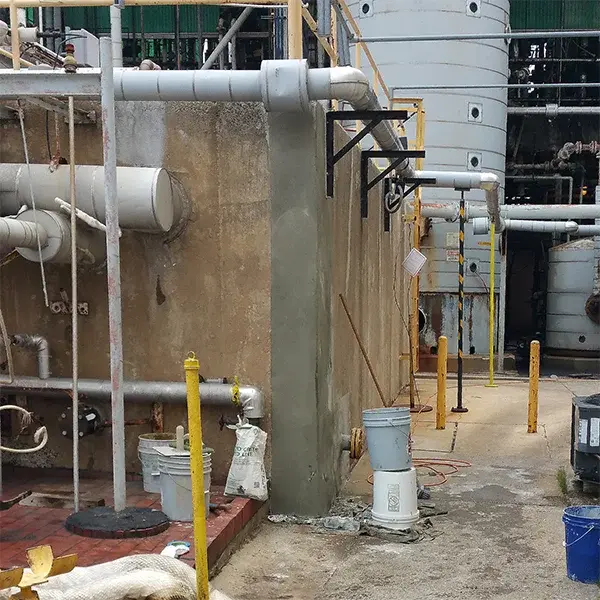

crack injection repair of concrete wastewater tank

Final repair of concrete wastewater tank at chemical plant.

Grout Injection Restores Wastewater Tank Containment

Water seeped through the exterior wall of this chemical plant’s above-ground concrete wastewater tank. BIG used grout injection to seal the leaks, helping maintain containment, limit concrete deterioration and extend service life.

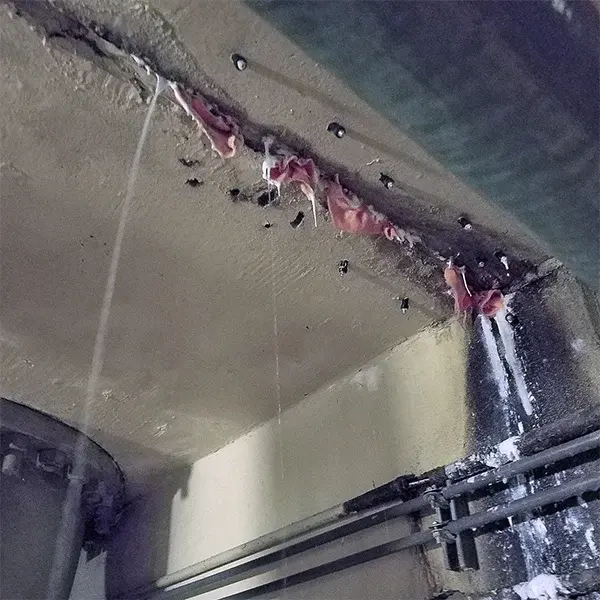

leaking seam in concrete ceiling

Grout injection stops water leaking from an overhead concrete seam.

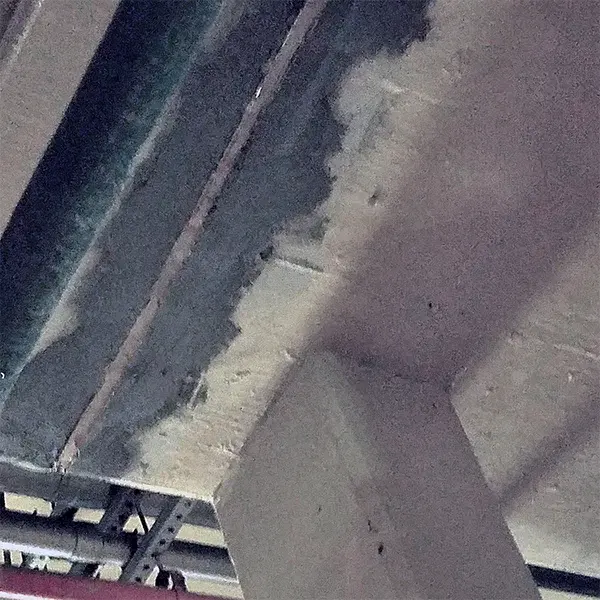

crack injection repair of leaking concrete ceiling

Final repair with rebuilt joint edges and an elastomeric seal.

Vault Expansion Joint Leak Sealing & Restoration

BIG injected polyurethane grout to seal the leaking ceiling expansion joint in a water treatment plant’s underground vault. Crews then rebuilt the concrete edges and installed an elastomeric seal, accommodating joint movement while helping prevent renewed water intrusion.

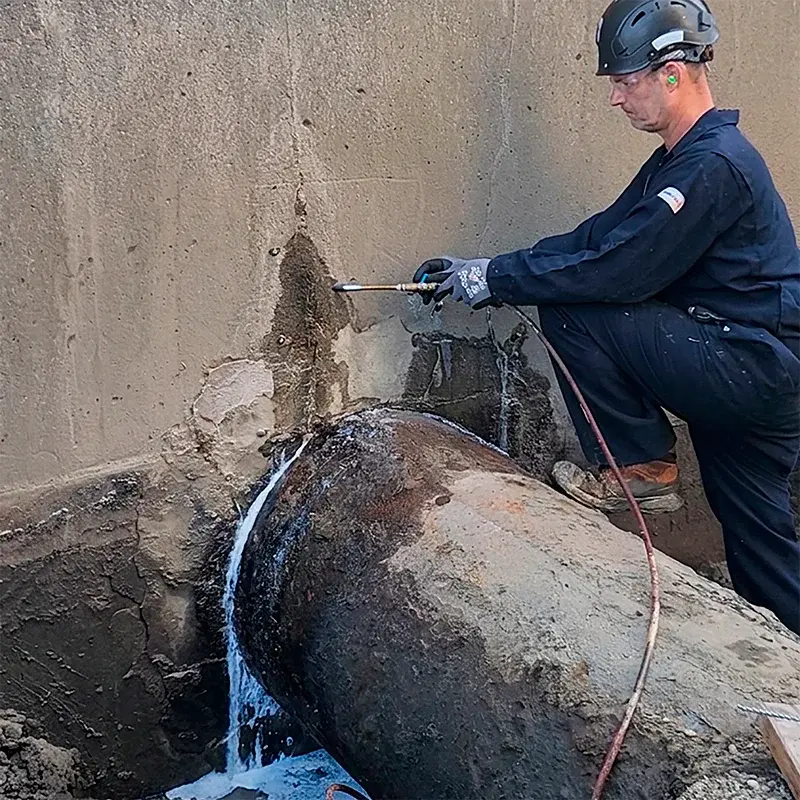

concrete leak injection work in process

Polyurethane grout is injected to seal leaking cracks in cooling tower basin.

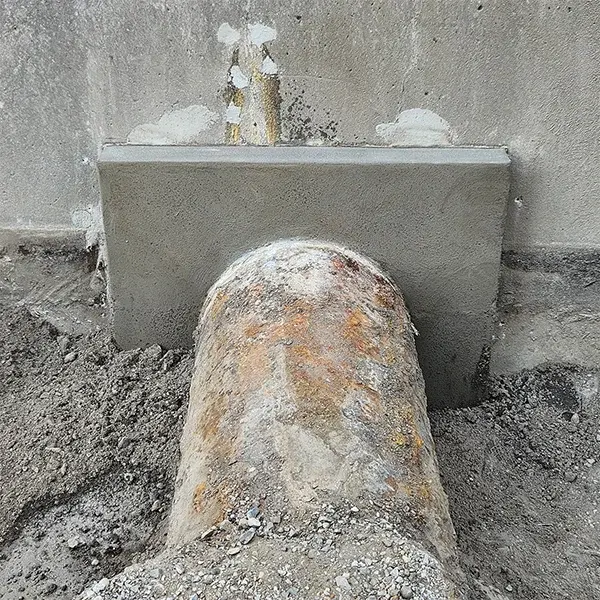

concrete cooling tower basin crack repair completed

A reinforcement wall was added to preserve the structure's service life.

Cooling Tower Basin Leak Sealing & Concrete Reinforcement

BIG injected polyurethane grout to seal leaks around a large water pipe penetration in this power plant’s cooling tower wall. Crews then added a concrete reinforcement wall, helping maintain watertightness and extend the structure’s service life.

avanti-grout-injection-video-thumbnail
Watch Video

Crack Injection Leak Sealing Video

Watch a short animation showing how the Avanti polyurethane grout injection system is used to stop an active water leak in a concrete manhole wall.

Request Concrete Leak Repair Service

Protect your concrete structures and keep small leaks from becoming larger maintenance problems. Tell BIG where the structure is leaking and how it affects your operations. Request an estimate or consultation for your New Jersey, Pennsylvania, Delaware or New York facility. Call 856-687-2227 or email our grout injection repair team.
